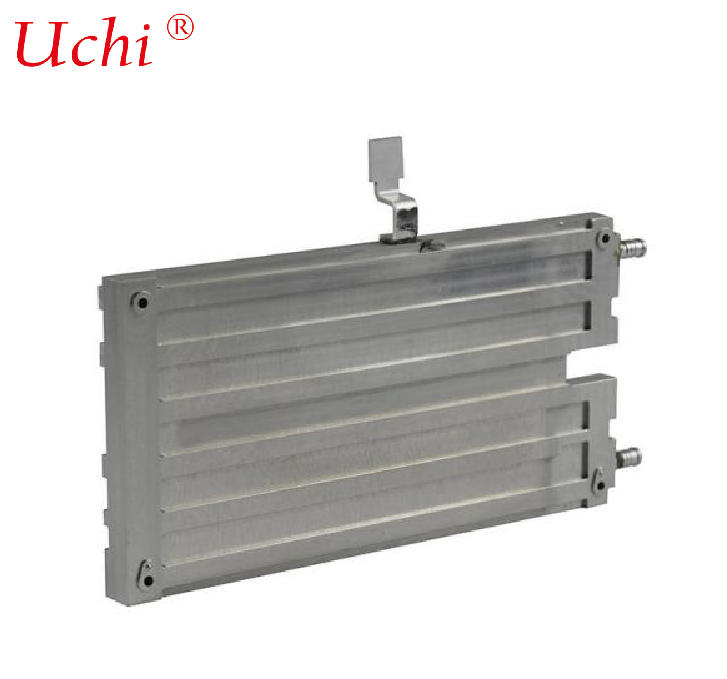

Liquid Cold Plate With Friction Stir Welding Process Friction Stir Welding（FSW）
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | डोंगगुआन, गुआंग्डोंग, चीन |
| ब्रांड नाम: | UCHI |
| प्रमाणन: | UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1000PCS |
|---|---|
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | थोक |
| प्रसव के समय: | 5-7 दिन |
| भुगतान शर्तें: | टी/टी, पेपैल, वेस्टर्न यूनियन, पैसा ग्राम |
| आपूर्ति की क्षमता: | प्रति माह 5000,000,000PCS |
|
विस्तार जानकारी |
|||
| सतह का उपचार: | मुद्रांकन + सतह खत्म | शोर: | ≤60DB |
|---|---|---|---|
| शीतलक प्रकार: | शीतलक प्रकार | आकार: | अनुकूलन |
| इलाज: | passivationगर्मी का संचालन | आईपी रेटिंग: | आईपी65 |
| तापमान रेंज आपरेट करना: | -40°C से 120°C | शोर रेंज: | 9.5-25 |
| ऊष्मीय चालकता: | 400 W/m·K | गहरी प्रक्रिया: | सीएनसी मशीनिंग |
| मूलभूत सामग्री: | एल्यूमीनियम या तांबा | ||
| प्रमुखता देना: | Friction stir welded liquid cooling plate,High-performance liquid cold plate,Durable FSW liquid cooling plate |
||
उत्पाद विवरण
Friction Stir Welding (FSW) Liquid Cold Plate
Friction Stir Welding (FSW) liquid cold plate is an aluminum alloy heat dissipation component. It joins the base plate with flow channels and the cover plate into a whole via solid-state welding without material melting, featuring high reliability, leak resistance and vibration resistance.
2. Working Principle
- Machine flow channel grooves on the base plate.
- Place the cover plate on top and clamp the assembly rigidly.
- A rotating stirring pin presses down and travels along the joint. Friction heat softens the metal into a plastic state.
- The plasticized metal is backfilled and forged behind the stirring pin, forming a dense weld seam.
- The entire process involves no material melting, welding wire, brazing filler metal or shielding gas.
Schematic Diagram of Friction Stir Welding Principle
3. Core Advantages
✅ Superior Strength: The weld strength reaches 90–95% of the base metal, much higher than that of brazed joints (approximately 50–70%).
✅ Excellent Leak Tightness: The dense weld is free of pores. Its burst pressure exceeds 1.5 MPa, ensuring no leakage under long-term high pressure.
✅ Minimal Deformation: As a solid-state welding process with a narrow heat-affected zone, the flatness is controlled within 0.1 mm/m.
✅ Fatigue & Vibration Resistance: Refined metal grains enable stable performance under vibrating and thermal cycling conditions such as vehicle and energy storage applications.
✅ Lightweight Design: Wall thickness can be reduced (e.g., from 1.5 mm to 1.0 mm), cutting weight by 20–30%.
✅ Eco-friendly: No welding fume or brazing material contamination, with low energy consumption.
✅ Flexible Design: Compatible with complex flow channels including serpentine channels, microchannels and special-shaped channels.
4. Common Materials
- Aluminum Alloy: 6061/6063 (balanced strength and thermal conductivity); 1050/1070 (high thermal conductivity).
- Copper Alloy: Higher thermal conductivity, applied to scenarios with ultra-high heat flux.
- Dissimilar Materials: Aluminum-copper, aluminum-stainless steel (unique advantage of FSW technology).
5. Typical Applications
