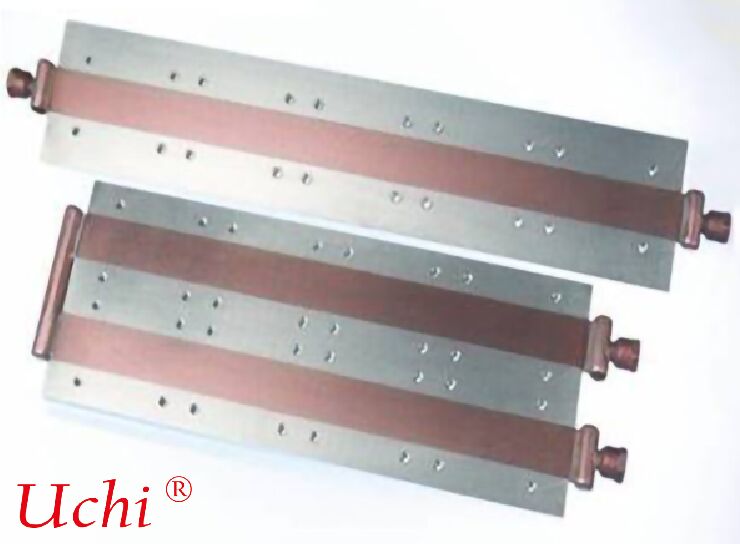

• Radiator-Integrated Liquid Cooling Plate Integrated Heat Dissipation Fins
Radiator-Integrated Liquid Cooling Plate Integrated Heat Dissipation Fins

Radiator-Integrated Liquid Cooling Plate Integrated Heat Dissipation Fins

उत्पाद विवरण:

उत्पत्ति के प्लेस: डोंगगुआन, गुआंग्डोंग, चीन
ब्रांड नाम: Uchi
प्रमाणन: SMC
मॉडल संख्या: ताप सिंक

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा: 100 पीसी
मूल्य: 1300-1500 dollars
प्रसव के समय: सीमित नहीं
भुगतान शर्तें: टी/टी, पेपैल, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता: प्रति माह 50000000 पीसी
सबसे अच्छी कीमत संपर्क करें

विस्तार जानकारी
हीटसिंक सामग्री: अल्युमीनियम सतही समापन: मिल फिनिश या एनोडाइजेशन
सामग्री: तांबा/एल्यूमीनियम प्रशंसक जीवन: 100000 घंटे
गहरी प्रक्रिया: सीएनसी मशीनिंग संचालन शक्ति: 2000 डब्ल्यू
सहनशीलता: ±1% अतिरिक्त प्रक्रिया: सीएनसी मशीनिंग
शुद्धता: ±0.002 ~ ±0.005मिमी अधिकतम दबाव: 5 बार
तापमान रेंज आपरेट करना: -40°C से 120°C सामग्री की बनावट: 6061
प्रमुखता देना:

Radiator-integrated liquid cooling plate

,

Liquid cooling plate with heat dissipation fins

,

High-performance liquid cooling radiator plate

उत्पाद विवरण

Radiator-Integrated Liquid Cooling Plate


In simple terms: Radiator-Integrated Liquid Cooling Plate = Liquid cooling plate + integrated heat dissipation fins

It attaches to heat-generating devices on one side and features dense fins on the other. Heat is transferred to the fin area via coolant circulation, forming a compact, all-in-one liquid cooling solution.


I. Structural Features



Bonding Surface (Cold Plate Side)


Flat surface that directly attaches to IGBTs, power modules, batteries, motors and other heat-generating components.


Fin Heat Dissipation Side (Radiator Side)


Internal flow channels extend into the dense fin region, forming a structure similar to a radiator.

As coolant flows through, heat is carried to the fins and dissipated via air cooling or natural convection.


Fully Integrated Structure


Mostly manufactured as one piece through skiving, die-casting or brazing,

eliminating the complex assembly of separate radiators and water tubes.


II. Working Principle


  1. Heat from components → conducts to the liquid cooling plate base
  2. Coolant flows through internal channels and absorbs heat
  3. Heated coolant flows into the finned radiator section
  4. Fins release heat into the environment via fans or natural airflow
  5. Cooled coolant circulates back to repeat the process

It is a hybrid solution combining liquid cooling heat transfer and air cooling final dissipation.


III. Core Advantages


  • Compact structure & high integration

    All-in-one design saves space, reduces connectors and leakage points.

  • Simple installation

    Directly mounted to components; only an external pump and reservoir are needed, no extra radiator required.

  • Uniform heat dissipation

    Excellent temperature uniformity on the base plate, avoiding local hotspots.

  • High reliability

    Brazed or skived structure provides strong vibration resistance, ideal for automotive and industrial control applications.



IV. Common Manufacturing Processes


  • Skived Radiator-Integrated Liquid Cooling Plate

    Fins and flow channels machined from a single aluminum block, offering high strength and continuous thermal conductivity.

  • Vacuum Brazed Type

    Base plate and fins joined by brazing, with denser fins and larger heat dissipation area.

  • Integral Die-Casting Type

    Suitable for mass production and low cost, widely used in passenger vehicle thermal management.



V. Typical Applications


  • New energy vehicles: integrated cooling for motors, ECU, OBC, DC-DC converters
  • Energy storage converters (PCS), photovoltaic inverters
  • Industrial servo drives, high-power power supplies
  • Laser equipment, welding machines, high-frequency power supplies
  • Construction machinery, commercial vehicle controller cooling


VI. Difference from Standard Liquid Cooling Plates


  • Standard liquid cooling plate: only absorbs and transfers heat; does not dissipate heat directly to the environment.
  • Radiator-integrated liquid cooling plate: absorbs heat, circulates internally, and dissipates heat via its own fins, forming a complete compact cooling system.
