Three-tank Disc Coating And Painting Machine For Varistor Production Equipment
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | Dongguan, Guangdong, चीन |
| ब्रांड नाम: | UCHI |
| प्रमाणन: | SGS.UL |
| मॉडल संख्या: | YC-सी |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 5000pcs |
|---|---|
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | थोक |
| प्रसव के समय: | 5-7 दिन |
| भुगतान शर्तें: | टी/टी, पेपैल, वेस्टर्न यूनियन, पैसा ग्राम |
| आपूर्ति की क्षमता: | प्रति माह 5000,000,000PCS |
|
विस्तार जानकारी |
|||
| प्रमुखता देना: | three-tank disc coating machine,varistor painting equipment,metal oxide varistor production machine |
||
|---|---|---|---|
उत्पाद विवरण
Three-tank Disc Coating And Painting Machine For Varistor Production Equipment
This specialized three-tank coating machine is designed for efficient varistor production, featuring sequential heating and coating processes with precise temperature control and automated powder application.
Process Flow
- Front buffer rack
- First box heating
- First plate coating with powder
- Second box heating
- Second plate coating with powder
- Third box heating
- Third round disc coating
- Fourth box fluidization with external fan cooling
- Cold air cooling
- Buffering
- Cutting off
Technical Specifications
| Parameter | Value |
|---|---|
| Machine Length | Approximately 6.5 meters |
| Total Weight | Approximately 1,000 kg |
| Model | YC-C (Three-tank coating) |
| Product Pitch | 10mm |
| Encapsulation Thickness | 0.5mm (single-sided) |
| Coating Foot Length | Controlled within 1.5mm (suitable for 20-35mm varistors) |
| Power Requirement | AC380V, three-phase five-wire (approximately 18kW) |
| Gas Source | Over 5kg |
Key Features
- Heating System: Heat sink type heating tubes with temperature range of 150-280°C

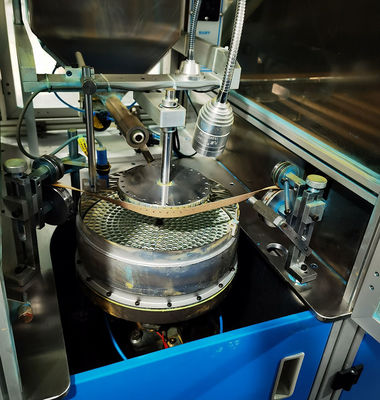

- Coating Method: Rotating disc dip coating with automatic powder feeding
- Powder Control: Photoelectric detection for precise powder level maintenance
- Safety Features: Warning device for box cover operation, high-temperature glass protection
- Construction: Aluminum profile frame with baked blue paint door panels
- Durability: Hard chromium plating on machine panels, anodic hardening for aluminum parts
- Warranty: 1-year comprehensive coverage (excluding human factors and natural disasters)
Equipment Visuals
Schematic Diagram of Three-tank Coating Machine

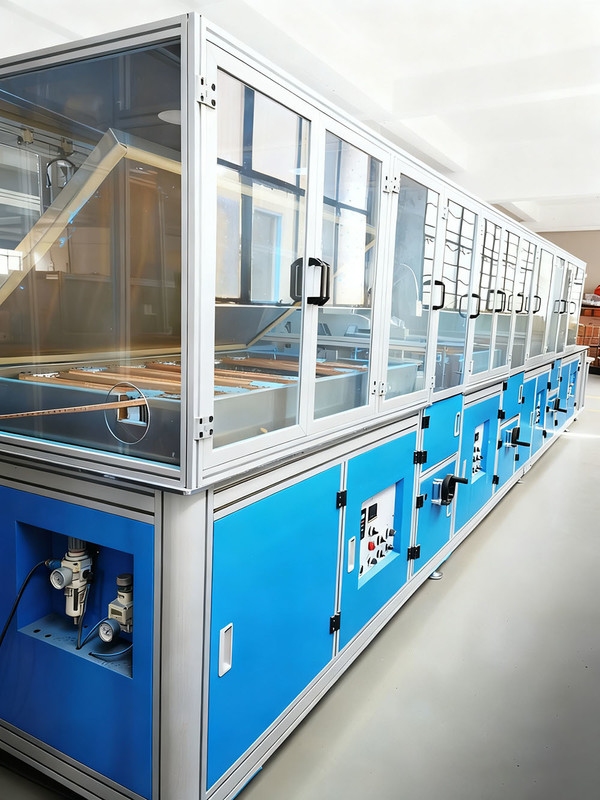

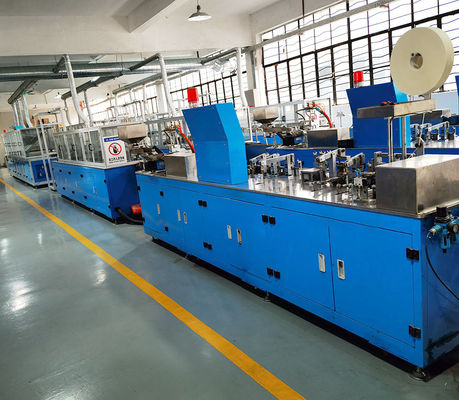

Actual Photo of Varistor Production Equipment
