The Automatic Production Machine For Varistors Features An Automatic Three-in-one System For Wire Forming, Chip Insertion And Welding
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | Dongguan, Guangdong, चीन |
| ब्रांड नाम: | UCHI |
| प्रमाणन: | SGS.UL |
| मॉडल संख्या: | वाईसी-270-आर |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 5000pcs |
|---|---|
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | थोक |
| प्रसव के समय: | 5-7 दिन |
| भुगतान शर्तें: | टी/टी, पेपैल, वेस्टर्न यूनियन, पैसा ग्राम |
| आपूर्ति की क्षमता: | प्रति माह 5000,000,000PCS |
|
विस्तार जानकारी |
|||
| प्रमुखता देना: | automatic varistor production machine,three-in-one varistor welding system,metal oxide varistor manufacturing equipment |
||
|---|---|---|---|
उत्पाद विवरण

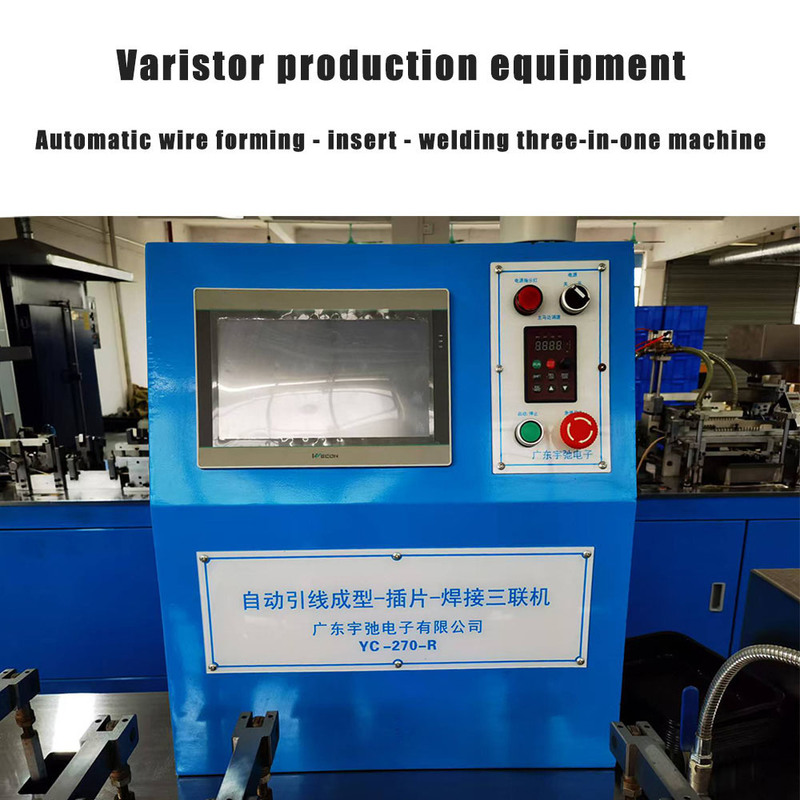

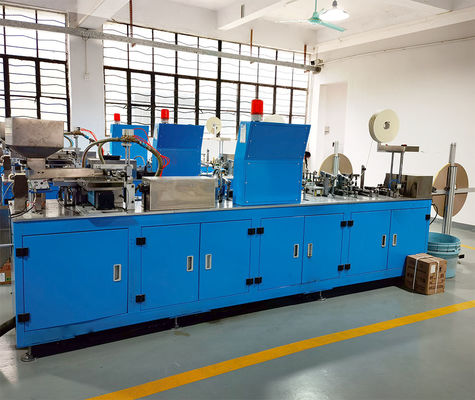

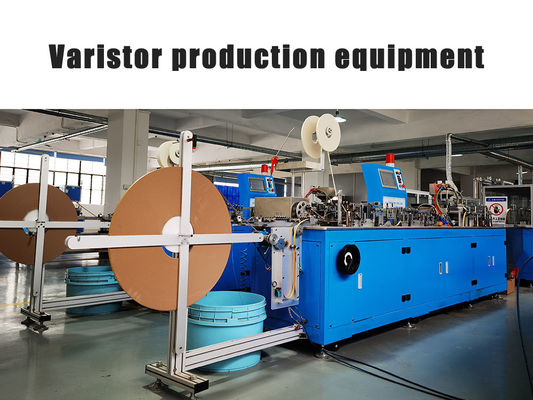

Automatic Production Machine For Varistors
Features an automatic three-in-one system for wire forming, chip insertion and welding.
Basic Operation Process
- Wire feeding section and motor belt feeding
- Straight wire feeding
- U-shaped cutting
- Punching
- Driven by the embossing wheel of the wire divider
- Wire alignment
- Flattening the long arm
- Floating foot position 1
- Floating foot position 2
- Parallel foot position
- Gold mold forming
- Tensioning before inserting pieces
- Driven by the needle wheel of the wire divider
- Buffering
- Applying solder
- (Blowing and drying) natural drying
- Inserting pieces
- Driven by the needle wheel of the wire divider
- First preheating zone
- Second preheating zone
- Dip welding
- Step drive
- Natural cooling buffer
- Buffer
- Step drive
- Cutting
- Buffer frame
Technical Parameters and Requirements
| Machine Dimensions | 10 meters long, approximately 1,500 kg weight |
| Machine Model | YC-270-R |
| Product Pitch | 10mm |
| Aperture | 2.5mm 28 single-row paper tape products |
| Production Efficiency | 180-260pcs/min (Pitch10) |
| Ceramic Tile Size | Diameter: 7D, Sheet thickness: T≤3.5mm |
| Lead Wire Specification | φ0.56mm |
| Power Usage | AC380V, 50HZ; Air source: 5kg/cm; Total power approximately 16KW |
| Warranty Period | One year (excluding human factors and natural disasters) |
Additional Technical Specifications
- Wire feeding mold: 0.56 specification mold (on assembly table)
- Maximum length of paper tape for wire feeding: 35mm
- U-shaped mold width: F5mm (1 set installed on machine)
- Alignment mechanism: Five sets of V-shaped bearings (13 in each set)
- Paper tape size: Three-in-one paper tape 14.5x0.85mmx1000m
- Machine equipped with two sets of forming mechanisms: floating feet and parallel feet
- Flux application with flow detection switch to prevent empty welding

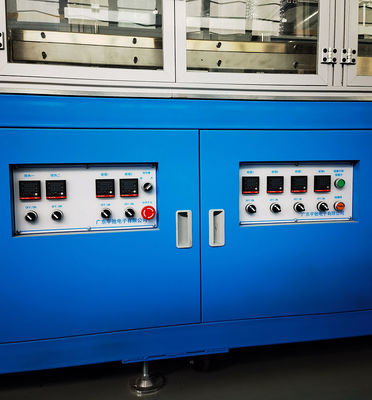

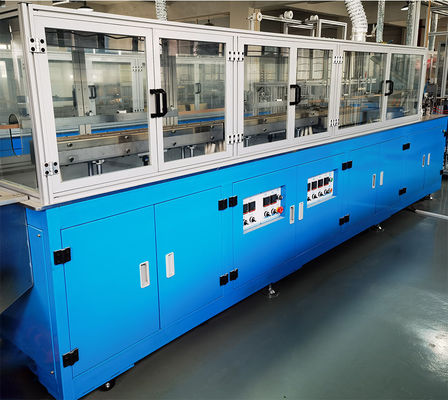

- Preheating tanks: Two groups (each 896mm long)
- Dip soldering tank with three heating units
- Machine frame: Welded plates with blue baked paint panel
- Noise reduction design with spiral bevel gear and synchronous belt transmission
- Includes all vulnerable parts, spare parts and related component drawings

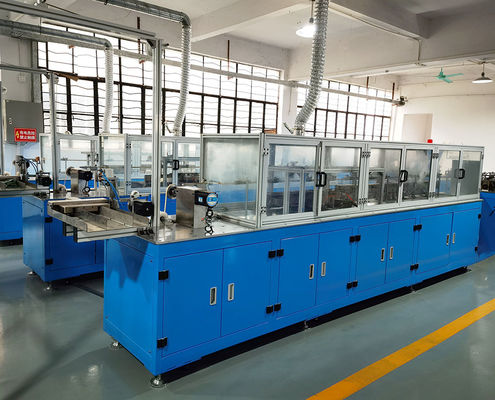

Equipment Schematic
