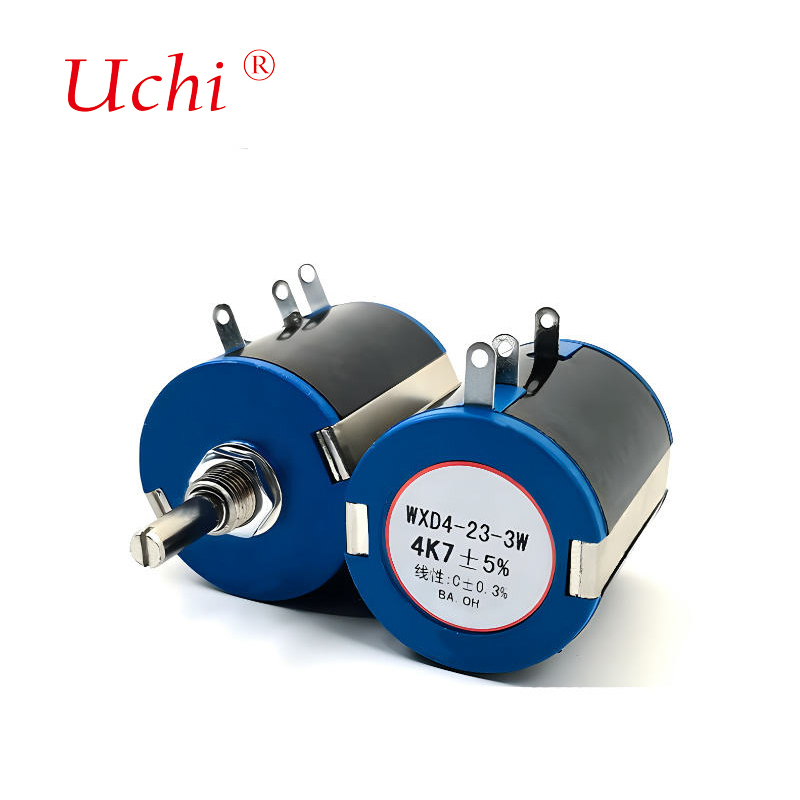

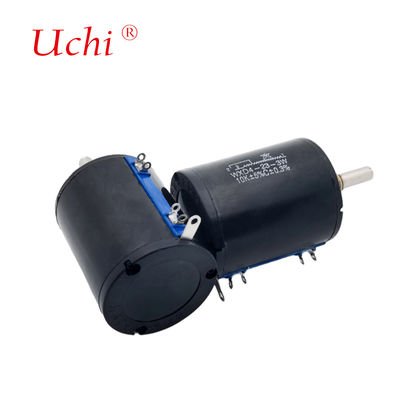

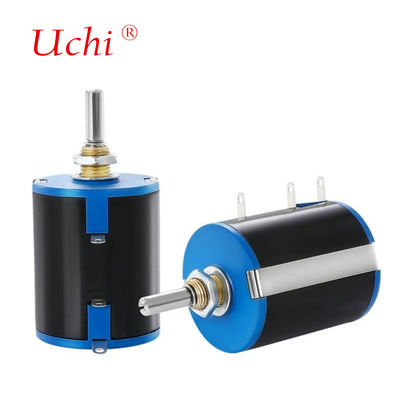

WXD4-23 Multi-turn Wire-wound Potentiometer 3W 10-turn Precision Rotary Potentiometer
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | Dongguan, Guangdong, चीन |
| ब्रांड नाम: | Uchi |
| प्रमाणन: | SMC |
| मॉडल संख्या: | WXD4-23 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 100pcs |
|---|---|
| मूल्य: | विनिमय योग्य |
| भुगतान शर्तें: | टी/टी, पेपैल, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | प्रति माह 50000000pcs |
|
विस्तार जानकारी |
|||
| प्रतिरोध: | 100~100K | प्रतिरोध सहिष्णुता: | ±2%~±5% |
|---|---|---|---|
| इन्सुलेशन प्रतिरोध: | ≥ 200MΩ | तापमान की रेंज: | -55 डिग्री सेल्सियस ~ + 125 डिग्री सेल्सियस |
| कुल यांत्रिक यात्रा: | 3600°±10° | मूल्यांकित शक्ति: | 3 डब्ल्यू |
| प्रकार: | वायरवाउंड पोटेंशियोमीटर | ||
| प्रमुखता देना: | 10-turn precision rotary potentiometer,wire-wound potentiometer 3W,multi-turn precision potentiometer |
||
उत्पाद विवरण
WXD4-23 Multi-turn Wire-wound Potentiometer 3W 10-turn Precision Rotary Potentiometer
Environmental Conditions
- Temperature range: -50°C to +100°C
- Relative humidity: 98% at +40°C
- Atmospheric pressure: 107-47kPa
- Vibration: 10-500Hz at 98m/s² acceleration
- Collision: 40-80 times/minute at 147m/s² acceleration
- Centrifuge acceleration: 98m/s²
Technical Specifications
| Model | Shaft Type | Shaft Length | Mechanical Angle | Electrical Angle | Turns |
|---|---|---|---|---|---|
| WXD4-23 | ZS-3 | 20×25×32mm | 3600°±20 | 3600°±10 | 10 |
Electrical Characteristics
- Rated power: 3W
- Maximum operating voltage: 200V (DC/AC RMS)
- Resistance range: 82Ω to 100kΩ (E12 series)
- Resistance tolerance: ±2%, ±5%, or ±10%
- Linearity: ±0.1% to ±1%
Detailed Parameters
| Parameter | Value |
|---|---|
| Type | Rotary Potentiometer |
| Technology | Metal Alloy |
| Resistance | 100Ω-100kΩ |
| Rated Power | 3W |
| Max. Operating Voltage | 500V |
| Operating Temperature | -55°C to +125°C |
| Shaft Diameter | 6mm |
| Certifications | TUV, RoHS, ISO |
Performance Features
- Electrical strength: withstands 750V AC for 1 minute
- Insulation resistance: ≥200MΩ (pre-moisture), ≥20MΩ (post-moisture)
- Rotation torque: 50-500gf·cm with 1:3 torque ratio
- Durability: 10,000 cycles (Grade 3) or 5,000 cycles (Grade 4)
- Humidity resistance: maintains stability after 96 hours at 93% RH
- Electrical load stability: maintains performance after 48 hours at rated power
Product Dimensions
Applications
The WXD4-23 potentiometer is ideal for precise voltage and current adjustment in:
- Telecommunications equipment
- Electrical systems
- Electronic instrumentation
- DC or low-frequency circuits
Manufacturer Information
BONENS is a specialized factory with 17 years of experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping and comprehensive support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
- Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support. - Could you provide samples?
Samples are available upon request after order placement. - Can your product be customized?
We accept OEM/ODM orders with flexible requirements. - What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible. - Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
