2WDD35D-4 10k Linear Dual Potentiometer Resistance Rotary Potentiometer
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | Dongguan, Guangdong, चीन |
| ब्रांड नाम: | Uchi |
| प्रमाणन: | SMC |
| मॉडल संख्या: | 2WDD35D |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 100pcs |
|---|---|
| मूल्य: | विनिमय योग्य |
| भुगतान शर्तें: | टी/टी, पेपैल, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | प्रति माह 50000000pcs |
|
विस्तार जानकारी |
|||
| प्रतिरोध: | 1kΩ~10kΩ | प्रतिरोध सहिष्णुता: | ± 15% |
|---|---|---|---|
| परिचालन तापमान: | -55℃~+125℃ | मूल्यांकित शक्ति: | 2W (@70℃) |
| प्रमुखता देना: | 10k linear potentiometer with dual resistance,rotary potentiometer for precision control,dual potentiometer with 10k resistance |
||
उत्पाद विवरण

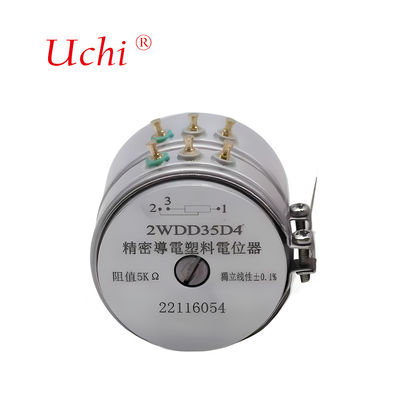

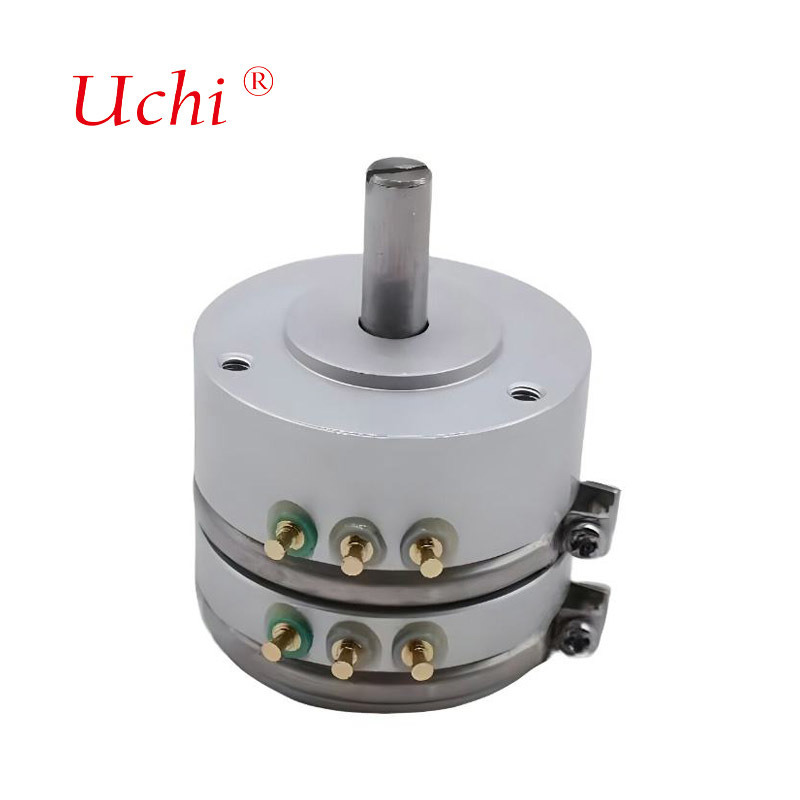

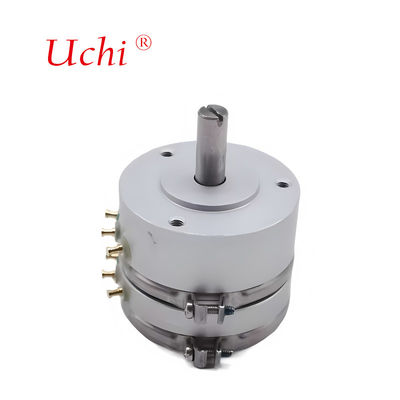

2WDD35D-4 10k Linear Dual Potentiometer Resistance Rotary Potentiometer
The 2WDD35D4 series products feature a hard aluminum alloy shell with conductive plastic resistance material, precision molded and laser-trimmed for optimal performance. Built with precious metal brush surge devices and stainless steel high-speed bearings, these potentiometers deliver long mechanical life, high resolution, smooth rotation, and low dynamic noise.
Product Features
- Hard anti-rust aluminum shell construction
- Molded integrated conductive plastic matrix
- Stainless steel shaft with high-speed bearings
- Precious metal brushes and current collector components
- High linear accuracy and long mechanical life
- Excellent resolution with low dynamic noise
Specification Parameters
| MAIN SPECIFICATION | |
|---|---|
| Total Resistance | 1K, 2K, 3K, 5K (Ω) |
| Resistance tolerance | ±15% |
| Independent Linearity | 0.1%, 0.2%, 0.3%, 0.5%, 1.0% |
| Output Smoothness | ≤±0.10% |
| Dielectric Strength | 1 minute at 1000V(AC.RMS) |
| Power Rate | 2W (@70°C) |
| Electrical Travel | 345°±2° |
| Resist. Temperature Coefficient Of Wire | ≤ ±400 P.P.M/°C |
| Insulation Resistance | ≥1000MΩ at 500V.D.C |
| MECHANICAL | |
| Mechanical Travel | 360°(Endless) |
| Starting Torque (MAX.) | 10x10-4N.M |
| Bearing | 2 Pairs Ball Bearing |
| Shaft | Stainless Steel |
| Housing Case | Aluminum alloy |
| Durable Performance | |
| Sliding life | Approx. 50,000,000(Shaft Revolutions) |
| Operating Temperature | -55°C~ +125°C |
| Vibration | 15G 2000Hz |
| Shock | 50G 11ms |
Product Size
Application Areas
Network communication equipment
Instrument equipment
Industrial machinery
Medical equipment
Injection molding machines
Crane torque control
Valves
Pedal testing
Robotic arms
Pan tilt control
Paper making machinery
Textile machinery
Product Catalog
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
