WXD3-12 1W 10k Ohm 5-ring Multi-turn Precision Wire-wound Rotary Potentiometer
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | Dongguan, Guangdong, चीन |
| ब्रांड नाम: | Uchi |
| प्रमाणन: | SMC |
| मॉडल संख्या: | WXD3-12 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 100pcs |
|---|---|
| मूल्य: | विनिमय योग्य |
| भुगतान शर्तें: | टी/टी, पेपैल, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | प्रति माह 50000000pcs |
|
विस्तार जानकारी |
|||
| प्रतिरोध: | 100~100KΩ | प्रतिरोध सहिष्णुता: | 5% |
|---|---|---|---|
| इन्सुलेशन प्रतिरोध: | ≥ 200MΩ | तापमान की रेंज: | -55 डिग्री सेल्सियस ~ + 125 डिग्री सेल्सियस |
| मूल्यांकित शक्ति: | 1 माह | कुल यांत्रिक यात्रा: | 3600°±10° |
| प्रकार: | वायरवाउंड पोटेंशियोमीटर | ||
| प्रमुखता देना: | 1W 10k Ohm precision potentiometer,5-ring multi-turn wire-wound potentiometer,rotary precision potentiometer with warranty |
||
उत्पाद विवरण

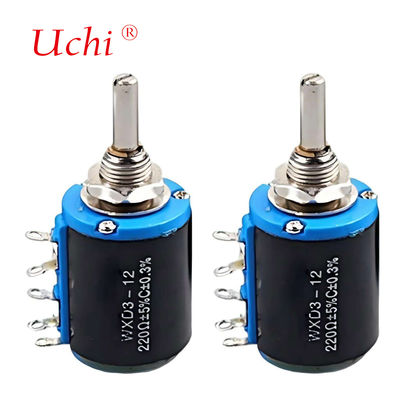

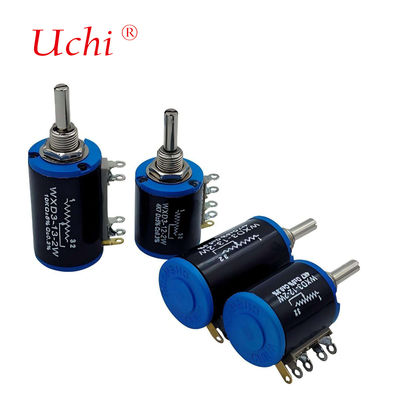

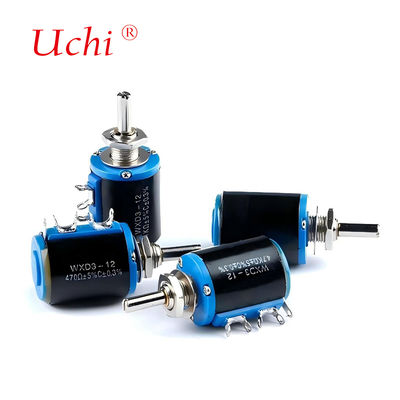

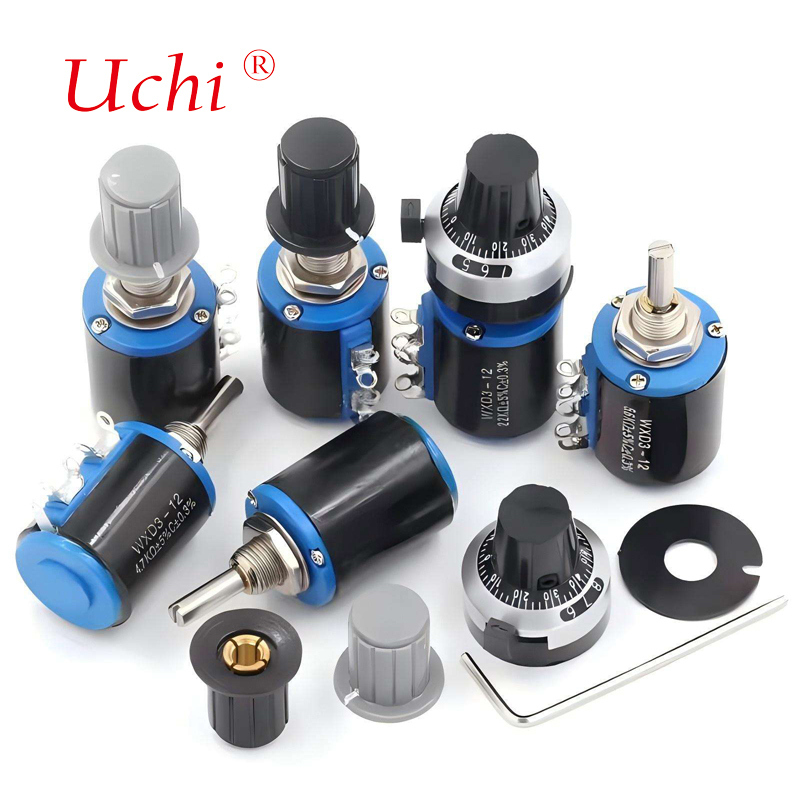

WXD3-12 1W 10k Ohm 5-ring Multi-turn Precision Wire-wound Rotary Potentiometer
The WXD3-12 potentiometer is a high-precision variable resistor designed for accurate voltage and current regulation in both DC and signal voltage applications. This multi-turn wire-wound component features a robust construction with nickel plating and golden axis shaft sleeve for enhanced durability.
Key Features
- Precision multi-turn design with 5 wire wounds
- 1W rated power with resistance range from 100Ω to 47KΩ
- Nickel-plated construction with golden axis shaft sleeve
- Pure copper terminals for easy soldering
- Flame-retardant, environmentally friendly materials
- High precision with excellent stability and low temperature coefficient
- Reliable contact with strong power load capability
Specification Parameters
| Item | Value |
|---|---|
| Model Number | WXD3-12-1W |
| Type | Wirewound Resistor |
| Rated Power | 1W |
| Resistance | 100Ω~47KΩ |
| Supplier Type | Original manufacturer, ODM |
| Technology | Wirewound |
| Package Type | Through Hole |
| Resistance Tolerance | ±5% |
| Temperature Coefficient | 150PPM |
| Operating Temperature | -50℃ ~ +100℃ |
| Shaft Length | L=16mm/20mm/25mm |
| Shaft Diameter | 4mm |
Product Size
Application Areas
The WXD3-12 Multi-Circle Wirewound Potentiometer is widely used in telecommunications, electrical systems, electronic instruments, computers, and automatic control systems for precision regulation of DC or low-frequency AC voltage and current.
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
