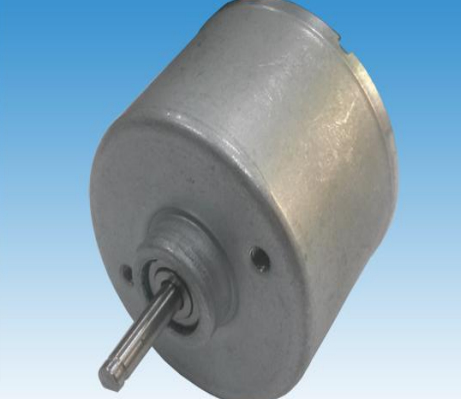

BLDC 3630 Brushless Motors For Industry Apparatus And Home Application
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | डोंगगुआन चाइना |
| ब्रांड नाम: | UCHI |
| प्रमाणन: | Completed |
| मॉडल संख्या: | BLDC 3630 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1000pcs |
|---|---|
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | मानक |
| प्रसव के समय: | 5-7 दिन |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 5000 पीस स्टॉक |
|
विस्तार जानकारी |
|||
| परिचयाीलन की रेंज: | 9V ~ 14V/19V ~ 26V | नामांकित: | 12V/24V निरंतर |
|---|---|---|---|
| प्रमाणपत्र: | -3 सी | नो-लोड गति आर/मिनट: | 11900 आरपीएम मैक्स |
| नो-लोड करंट ए: | 0.35 अधिकतम | अधिकतम दक्षता पर गति: | 9065 आरपीएम मैक्स |
| अधिकतम दक्षता पर वर्तमान: | 1.08a मैक्स | अधिकतम दक्षता पर: | 61.0% अधिकतम |
| प्रमुखता देना: | Industry Apparatus Brushless Motor,3630 Brushless Motor |
||
उत्पाद विवरण
BLDC 3630 Brushless Motors For Industry Apparatus And Personal Care
A BLDC 3630 brushless motor is a type of permanent magnet synchronous motor (PMSM) that operates without brushes and a mechanical commutator. Instead, it relies on an electronic controller to manage the flow of current through the motor windings. The "3630" designation typically refers to the motor's physical dimensions, where "36" represents the outer diameter in millimeters and "30" represents the length in millimeters.

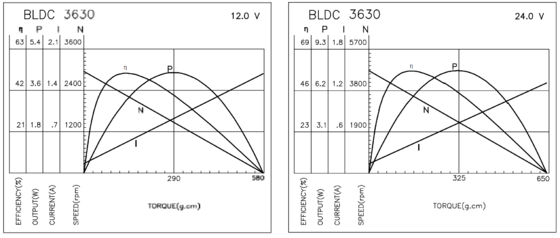

Brushless Motor Technical Data
TYPICAL APPLICATION:
1.Industry Apparatus
2.Personal Care
3.Home Application
Features
-
High Efficiency and Low Maintenance: BLDC motors eliminate the need for brushes and mechanical commutation, reducing energy losses and wear, resulting in higher efficiency and lower maintenance costs.
-
Compact Size and High Power Density: Despite its small size (36mm diameter and 30mm length), the BLDC 3630 motor can deliver significant power, making it suitable for applications where space is limited but high performance is required.
-
Wide Speed Range and Precise Control: These motors can operate over a wide range of speeds and can be precisely controlled using PWM (Pulse Width Modulation) for speed regulation
