MT010 Electric Lifting Desk Motor With Overload Protection Collision Detection
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | डोंगगुआन चाइना |
| ब्रांड नाम: | UCHI |
| प्रमाणन: | Completed |
| मॉडल संख्या: | एमटी010 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1000pcs |
|---|---|
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | मानक |
| प्रसव के समय: | 5-7 दिन |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 5000 पीस स्टॉक |
|
विस्तार जानकारी |
|||
| मूल्यांकित शक्ति: | 80W अधिकतम | नाममात्र वोल्टेज: | DC24V |
|---|---|---|---|
| प्रमाणपत्र: | -3 सी | गति को घुमाते हुए: | 180 आरपीएम मैक्स |
| बड़ा कमरा: | एकल/दोहरी | अनुपात में कमी: | 44 |
| चुंबकीय ध्रुव संख्या: | एक जोड़ा | रोटर का आकार: | 3025/3041 |
| घुमाव: | 7N.M मैक्स | ||
| प्रमुखता देना: | Collision Detection Lifting Desk Motor,MT010 Lifting Desk Motor,Overload Protection Lifting Desk Motor |
||
उत्पाद विवरण

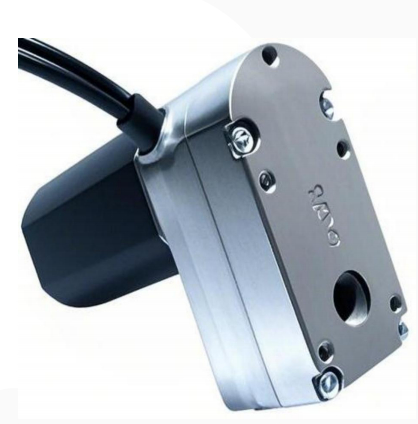

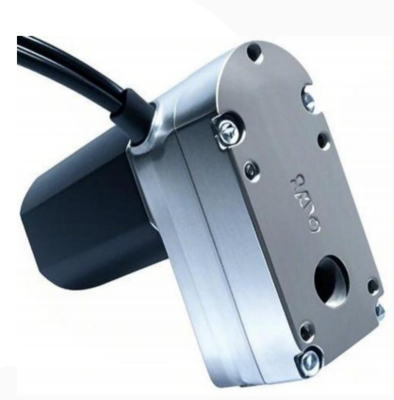

MT010 Electric Lifting Desk Motor With Overload Protection Collision Detection
| Voltage | DC24 | DC24 | DC24 | DC24 |
| Power | 80 W | 60W | 80W | 60W |
| Rotate Speed | 180 RPM | 180RPM | 90RPM | 90RPM |
| Torsion | 4N.M | 2N.M | 7N.M | 3N.M |
| Reduction on Ratio | 32.6 | 32.5 | 65 | 65 |
| Hall | Single/Dual | Single/Dual | Single/Dual | Single/Dual |
| Magnetic Pole Number | A pair | A pair | A pair | A pair |
| Rotor Size | 3041 | 3025 | 3041 | 3025 |
Product features:
1.Aluminum alloy die-casting housing, double worm gear and worm drive.Zinc Alloy Die-Casting Enclosure.
2.Customized wire length and sequence.
3.Horizontal installation inside the hidden table frame.
4.Optional brake at motor tail end.
Safety and Protection
-
Overheat Protection:The MT010 motor includes built-in overheat protection to prevent damage from excessive temperatures.
-
Overload Protection:It also features overload protection, which cuts off the power when the load exceeds the rated capacity, ensuring the motor's longevity.
Design and Compatibility
-
Dual Motor System:The MT010 often uses a dual motor system, with one motor on each side of the desk. This ensures even and synchronized lifting of the desk's legs, providing stability and reliability.
-
Versatile Applications:It is suitable for a wide range of desktop materials and sizes, making it a versatile choice for both home and office environments.
