BLDC 3626 Brushless Motors For Industry Apparatus And Personal Care
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | डोंगगुआन चाइना |
| ब्रांड नाम: | UCHI |
| प्रमाणन: | Completed |
| मॉडल संख्या: | BLDC 3626 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1000pcs |
|---|---|
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | मानक |
| प्रसव के समय: | 5-7 दिन |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 5000 पीस स्टॉक |
|
विस्तार जानकारी |
|||
| परिचयाीलन की रेंज: | 9V ~ 14V/19V ~ 26V | नामांकित: | 12V/24V निरंतर |
|---|---|---|---|
| प्रमाणपत्र: | -3 सी | नो-लोड गति आर/मिनट: | 11900 आरपीएम मैक्स |
| नो-लोड करंट ए: | 0.35 अधिकतम | अधिकतम दक्षता पर गति: | 9065 आरपीएम मैक्स |
| अधिकतम दक्षता पर वर्तमान: | 1.08a मैक्स | अधिकतम दक्षता पर: | 61.0% अधिकतम |
| प्रमुखता देना: | 3626 Brushless Motors,Brushless Motors For Industry Apparatus,Brushless Motors For Personal Care |
||
उत्पाद विवरण

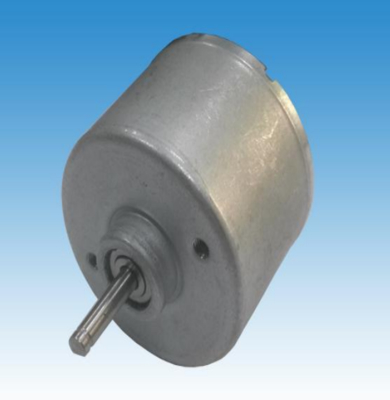

BLDC 3626 Brushless Motors For Industry Apparatus And Personal Care

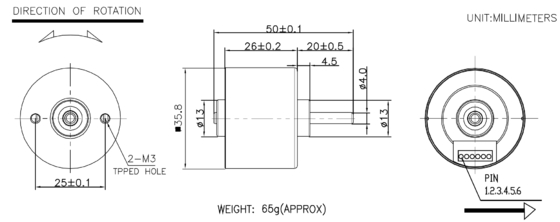

A BLDC 3626 brushless motor is a permanent magnet synchronous motor (PMSM) that operates without brushes and a mechanical commutator. Instead, it relies on electronic controllers to manage the flow of current through the motor windings. The "3626" in its name typically refers to the motor's physical dimensions, where "36" represents the outer diameter in millimeters and "26" represents the length in millimeters. This specific size makes it suitable for a wide range of applications where compactness and high performance are required.

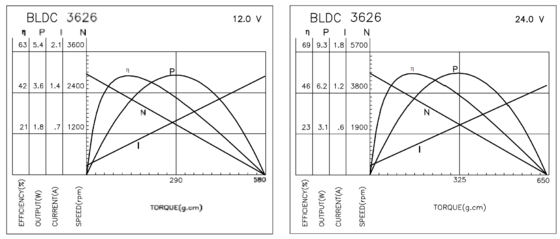

Brushless Motor Technical Data
TYPICAL APPLICATION:
1.Industry Apparatus
2.Personal Care
3.Home Application
Features
-
High Efficiency and Power Density: BLDC motors eliminate the need for brushes and mechanical commutators, reducing energy losses due to friction and electrical resistance. This results in higher overall efficiency compared to brushed DC motors.
-
Low Noise and Vibration: The design of BLDC motors minimizes mechanical noise. The lack of brushes also reduces electrical noise, making them suitable for applications where low noise levels are crucial.
