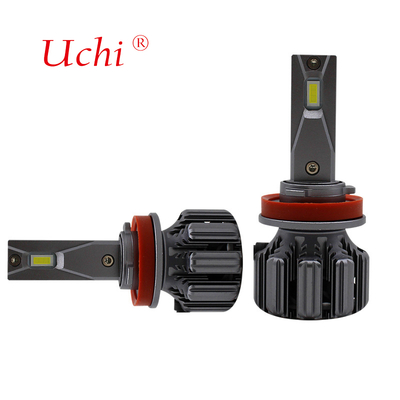

CSP High And Low Beam Bulbs Of S8 Car Led Headlights High Brightness
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | Dongguan, Guangdong, चीन |
| ब्रांड नाम: | Uchi |
| प्रमाणन: | Processor |
| मॉडल संख्या: | S8 H8/9/11 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1000pcs |
|---|---|
| मूल्य: | विनिमय योग्य |
| प्रसव के समय: | 2 सप्ताह |
| भुगतान शर्तें: | टी/टी ， पेपैल ， वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | प्रति माह 50000000pcs |
|
विस्तार जानकारी |
|||
| वोल्टेज: | 9-30 （V） | चमकदार प्रवाह: | 2860 एल.एम. |
|---|---|---|---|
| सेवा जीवन: | ≥ 30,000 घंटे | प्रकाश स्रोत शक्ति: | 26 （W） |
| मौजूदा: | 2.4 （ए） | सामग्री: | विमानन एल्यूमीनियम सामग्री, तांबा सब्सट्रेट, प्रशंसक |
| प्रमुखता देना: | CSP led bulbs for cars,S8 car light bulbs,High Brightness S8 headlight bulb |
||
उत्पाद विवरण
The CSP High And Low Beam Bulbs Of The S8 Car Led Headlights Have High Brightness
We use three-core 80mil large chip LED beads - high-brightness and high-concentration light
The diameter of the tungsten filament in halogen bulbs is 1.5mm and the length is 5mm. To produce a good light shape, the size of the light-emitting surface should be designed according to this ratio. Therefore, we use CSP lamp beads with 3570 three-core 80mil large-sized chips. Under the same power, the fewer the number of chips, the larger the chip size and the higher the light density. In simple terms, three-core LED beads have a higher light concentration and illuminance than six-core LED beads. The larger the chip size, the higher the cost.
LED headlights are reflected light. Only when the focal length is the same as that of the original vehicle bulb can they be installed in the lamp to produce a good light shape and high illuminance. The three core elements of light concentration are: the position of the light-emitting point, the size of the light-emitting surface, and the distance between the light-emitting surfaces.
Product parameters
| Name | S8 car headlights | Model | H1/H4/H7/H8/H9/H11/9005/9006/9012 |
| Light source | CSP lamp beads | Material | Aviation aluminum materials, copper substrates, fans |
| Color temperature | 6000K | Light effect | 110LM / W |
| Power | 26W | Luminous flux | 2860LM |
| Working voltage | DC9-30V | Working environment | -40℃ ~ +80℃ |
| Waterproof grade | IP67 | Warranty period | 1 Year |
Product size
Note: The marked dimensions are measured manually and may have minor errors. The actual size shall prevail
